Bengal Disc Brakes

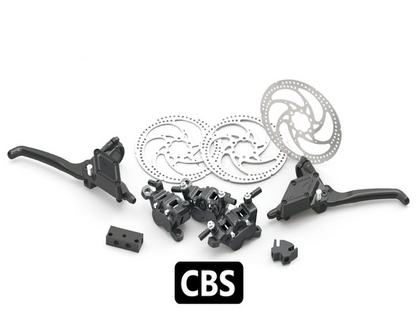

ARES 9.5 [CBS™]

ARES 9.5 [CBS™]

Features

  • Side push open hydraulic disc brake system
  • Aluminum forged master cylinder and caliper
  • 4 piston caliper design
  • Master cylinder with reach adjustment
  • 2-Piece clamp for easy assembly
  • “EZ-adjust” hose connector for frame
  • Pad wear inspection and cleaning made easy with open window drive

    PATENT NO:M666924

Specifications

Weight
Master cylinder: 176g
Caliper: 179g

Lever
4-finger ball-end lever blade

Rotor
1.8mm thickness(C)

Pad
Semi-metallic compound

Fluid
Mineral

Optional
L:Parking Lock(Link)
T:2.3mm thickness(Link)
EZ:EZ PLUG IN
E:Power cut-off sensor for E-bike(Link)
E-bike (Notice magnetic field) (Link)
EA:Analog sensor
Semi-metallic compound (5mm)
H:Handbrake kit (Link)

Optional

  • L: Parking Lock
  • T: 2.3mm Thickness
  • EZ: EZ PLUG IN
  • E: Power Cut-Off Sensor for E-Bike
    (Connector types, please view P.8 of OE Catalogue 2026)
  • EA: Analog sensor
  • Pads: Semi-metallic compound 5mm


Usage : CARGO, E-BIKE, TRICYCLE, URBAN, HYBRID, GRAVEL, MOUNTAIN, RECUMBENT, TANDEM, TANDEM CO-PILOT




Please indicate your preferred connector type when purchasing.

Note: The 2A model is not waterproof.

Important: Please visit the following page for the spec & option details required after ordering online.  We need the details on other specs before delivering it to you.


Bengal at EuroBike 2025

EuroBike 2025 kiosk A10


Combined Braking System [CBS]

"CBS simply means that the front and rear wheels can brake together", says Sam at Bengal.   I asked Sam about how it compared to the MAGURA IBS system.  I had noticed that the only difference is that there's no enclosed casing, but Bengal showcases the mechanically trademarked pieces needed to operate this new braking system.  CBS optimizes braking force distribution between the front and rear brakes of bicycles and cargo bikes.

"After studying the CBS system on motorcycles, I noticed some minor issues, which led me to design the current system — simple yet functional." said Sam at Bengal.  Both Bengal and Magura were inspired by the controlled braking used on motorcycles.

The linkage design of front and rear brakes ensures better deceleration and stability when braking.

Both the IBS™ and CBS™ are ideally configurable with trikes and longtail kind of bikes. We offer a tailored configuration of both hydraulic and waterproofed electrical wiring — depending on the grade chosen — housing.  Contact us to start the conversation on what you need.

Road tests show that CBS — Combined Braking System — can shorten stopping distance by about 40%

CBS is activated every time the brake is applied, providing optimization of riding dynamics.

The CBS requires no power supply or sensors, providing convenience and reliability over product durability.

Advantage

1. Vehicle stability

Combined braking of the front and rear wheels can significantly stabilize the vehicle and ensure safe braking.

2. Shorter stopping distance

Optimize the distribution of braking force between front and rear wheels, significantly shortening the stopping distance

The stopping distance of an average cyclist is shortened by about 40% when the bicycle is unloaded and one-hand braking is engaged.

In compliance with legal requirements, two braking systems are still installed on the bike.

However, CBS can be operated comfortably with one hand without any loss of safety.




Taipei Cycle 2025
Taipei Cycle 2025 Booth: J1225 in Hall 1 of the TaiNEX area
